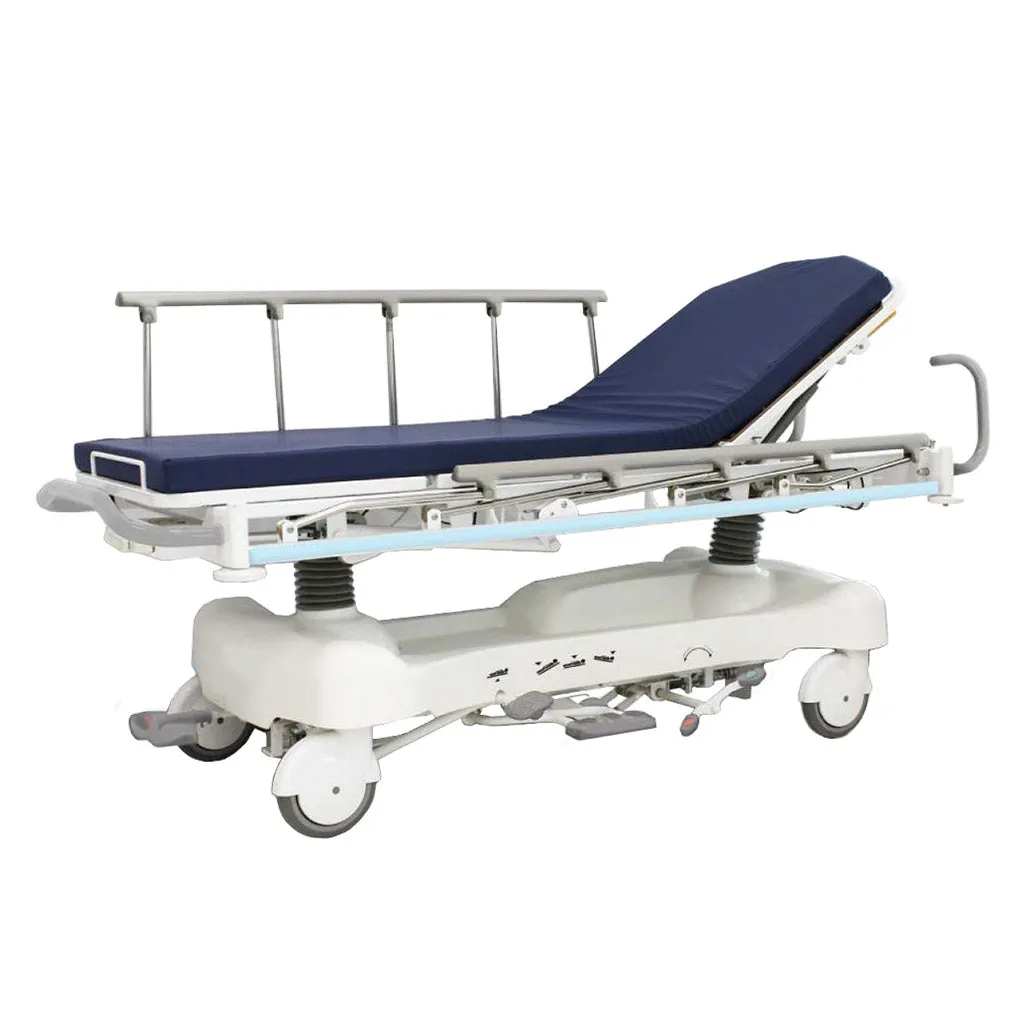

Novum Medical Hydraulic Stretcher Model NV9000
A simplistic design has been used for the NV9000 stretcher, which incorporates a wide range of features that bring efficiency to the medical and surgical environments. The caregiver controls the movement of the NV9000 by using pedals that are located around the center of the base. There are two pedals on each stretcher side, where one pedal is used to raise the stretcher and the other pedal is used either for lowering the stretcher or for setting it in the trendelenburg or reverse trendelenburg position. Additionally, the stretcher has several standard features like a central brake locking system, a fowler section that can be adjusted, a radio-lucent board, an adjustable knee section, and roller bumpers.
FEATURES:
- Centrally controlled brake system
- Collapsible side rails
- Dual side foot pedals
- Retractable 5th wheel steering system
- X-ray compatible backrest
- Shock absorbing, non-marking bumpers
- Base storage area for oxygen E-cylinder tank
- Foley bag holder
- Removable IV pole
- 3" mattress Included
SPECIFICATIONS:
- Dimensions: 83"L x 33"W
- Weight Capacity: 550 lbs
- Patient Surface: 75.7" x 24.5"
- Height Range: 21" - 33.5"
- Caster Diameter: 4"
- Fifth Wheel Diameter: 4"
- Positioning: trendelenburg, reverse trendelenburg, hi-lo and fowler
