- IDEAL CHOICE - This speaker has a power rating of 125 Watts RMS, allowing for excellent loudness and clarity in open air settings. The DS18 Hydro all elements design is a popular choice for keeping your vehicle's music loud in all weather. The powerful 6x9 cone amplifies the sound range of the built-in coaxial tweeter.
- INTEGRATED RGB LIGHT - The DS18 Marine Grade Coaxial speakers are 2-way and they feature integrated RGB light. The beautifully lighted RGB LED lights will set the tone and match any colour scheme supported by the LED BTC controller.
- MARINE GRADE - Our objective is to maintain our dominance in the marine speaker market with our unique NXL series. This collection of marine speakers is a sight to behold. They have an IP65 waterproof rating, so you know they can withstand the elements.
- EFFICIENT AND STURDY - The NXL-69 waterproof speaker was designed to survive for years and was the result of extensive research and development. It has a sensitivity rating of 92dB, which means it doesn't require a lot of power to reach high volume levels.
- HYDRO - Our HYDRO NXL Speakers line is an all element line of speakers, its the perfect choice if you’re in the mood to take the boat out on the water or looking to get some mud on the tires. Suitable for all the elements UTV, ATV & Jeeps. Its also a 100% UV stable meaning it can withstand all sorts of harsh environments.

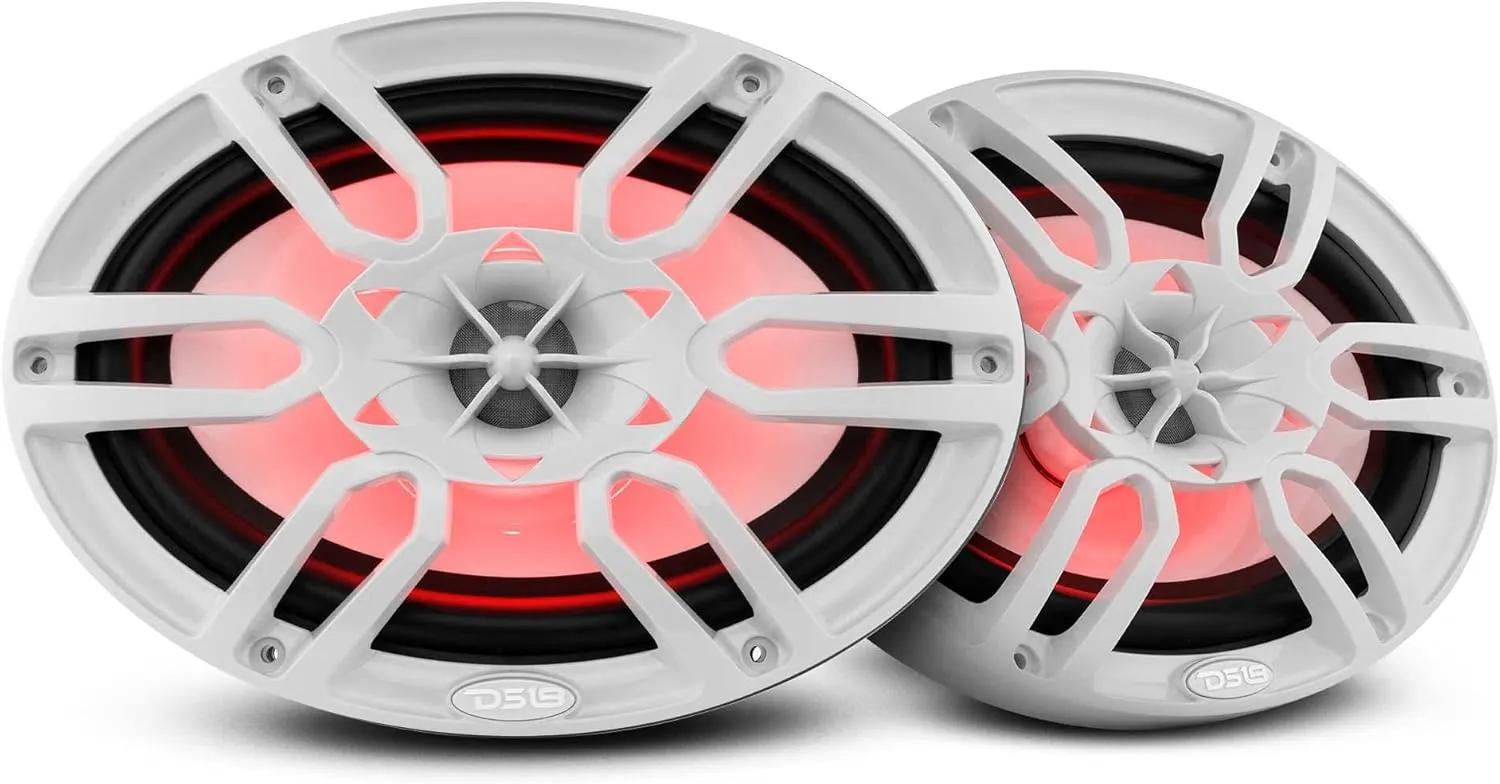

DS18 6X9" Marine Speaker
Nominal Diameter 6X9" / 152.4x228.6mm
Nominal Impedance 4 ohms
RMS Power Handling 125W
MAX Power Handling 375W
Sensitivity (1w/1m) 92dB
Frequency Response 40Hz-20KHz
Recommended HI Pass Crossover60Hz
BODY / FEATURES
UV Compliant Yes, 100% Stable
Marine Grade TypeIP65
RGB LED Yes, RGB integrated
Grill Type Injection Molded Composite ASA with UV Protection coating Pair Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter 1.4" / 35.5mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Injection Molded Polypropylene UV Compliant
Surround Material Butyl (Rubber)
Basket Material High Temp Injection Molded Composite with UV Protection coating
Magnet Material Ferrite (Y35) Neodymium (N35)
Magnet Weight24oz 0.75oz
TWEETER SPECIFICATIONS
Voice Coil Diameter1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material PEN
Magnet Material Neodymium (N38H)
Magnet Weight 0.51oz
MEASUREMENT
Overall Diameter7.4"x10.2" / 189x260mm
Overall Depth5.52" / 115mm
Front Mount Baffle Cutout8.6"x5.9" / 220x150mm
Mounting Depth3.11" / 79mm
